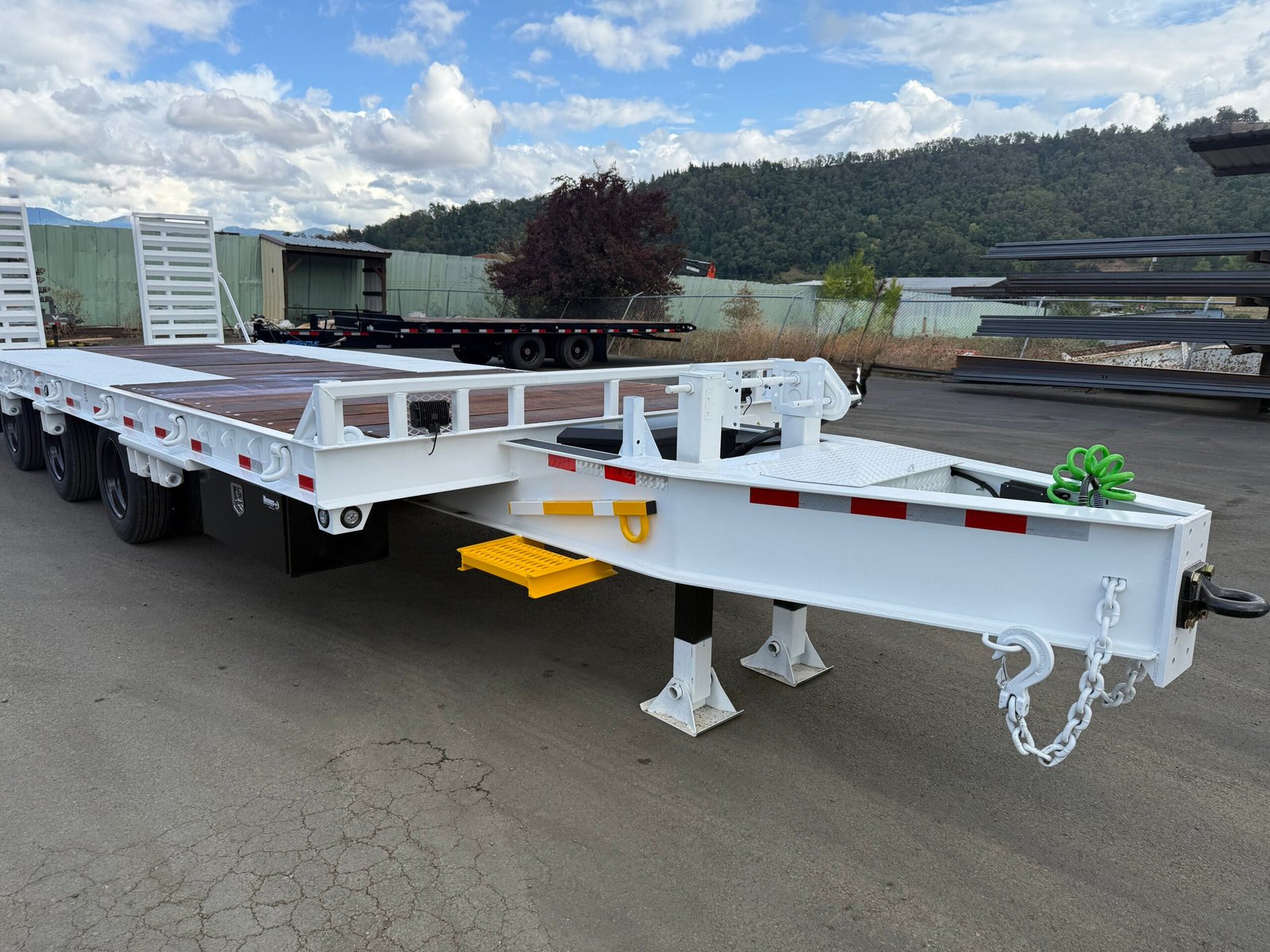

Zieman 62K Flat w/ramps Model 2735

Zieman flatbed

Model 2735

TRIPLE 22,500 LB ABS AXLES

62K Rated

FLATBED WITH RAMPS

APITONG WOOD DECK

$54,000

Product Features

Frame and suspension

• • 14″ x 26 lb I-Beam main rails
  • 8″x11.5 lb channel deck side rails
  • 6″ x 8.2 lb Channel Cross Members
  • Tongue Rails continuation of Main Rails
  • Standard 12.25 x 7.5″ S-Cam straight Air Drum Brakes with emergency breakaway system
  • Three 22,500 lb Rated Axles with Oil Bath Hubs

Additional standard features

• • Ramp- Spring assisted 64″ long x 21.5″ wide. (Adjustable from 96.5″ outside to outside to 40.5″ inside to inside)
  • Wood Deck ( 2x 12 Apitong)
  • Hitch – Lunette Pintle Ring 3″ I.D.
  • Tire- 215/75r17.5 (H) 8 Lug (8 on 275mm)
  • Tongue Jack – Drop Leg- two speed crank with 25K rating
  • Tool Box – 10x15x24
  • D-Rings (1″ Diameter) 4 – Per side
  • A.T.A. standard &- way for air bakes
  • LED lights (D.O.T. standards)

Weights and Measurements

• Overall Length – 34′ – 2″ (including ramp overhang)
• Overall width – 102″
• Tongue Length – 7′ – 3″
• Deck Length – 25′ (including beavertail)
• BeaverTail Length – 48″ (center part of beavertail is opened for bucket storage)
• Deck Height – 36.5″ (Loaded)
• Climb Angle (Ramp = 16 Degrees / Beavertail = 12.9 Degrees)
• GVWR – 62,000 Lbs. at 55 M.P.H.
• Payload Capacity – 50,000 lbs at 55 M.P.H.
• Trailer Weight – 11,200 lbs
