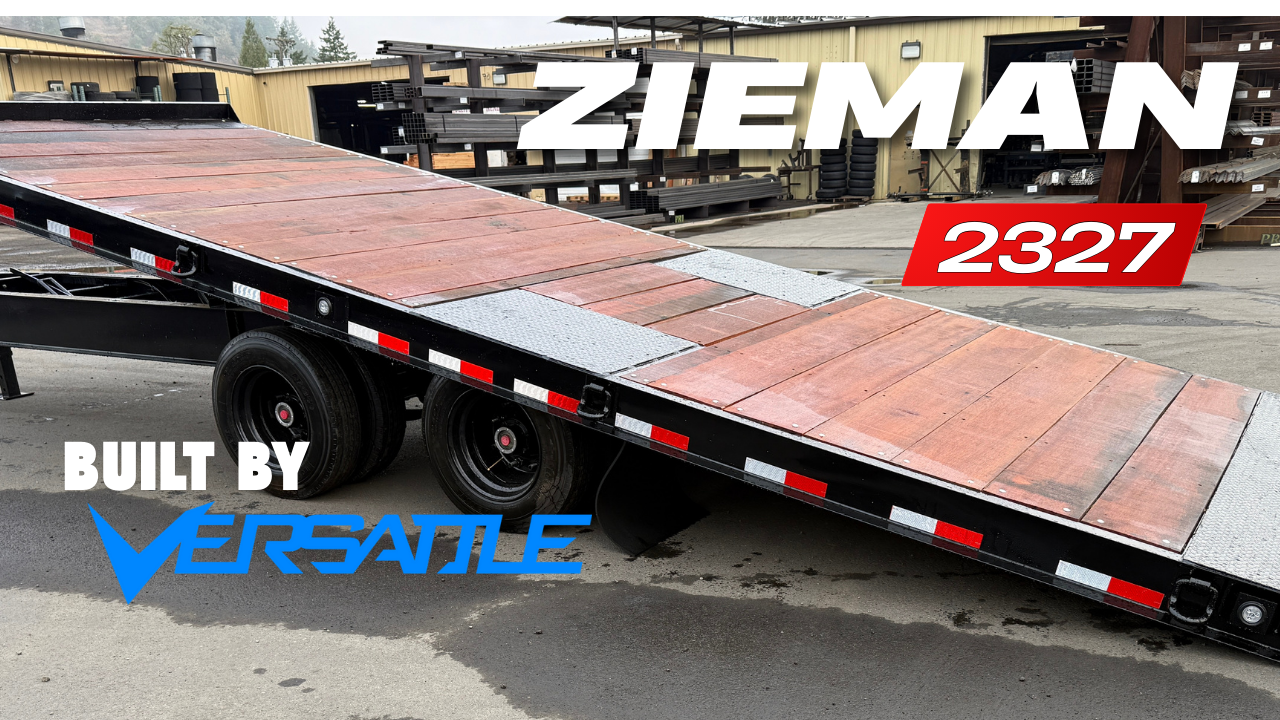

Zieman 45K Tilt Model 2327

Zieman Tilt

Model 2327

22,500 LB ABS AXLES

45K Rated

Tilt deck

APITONG WOOD DECK

$43,000

Product Features

Frame and suspension

• • 8×11.5″ Lb I-Beam main rails
  • 8″ x 11.5 Lbs channel deck side rails
  • 5x2x 3/16 wall tube crossmembers
  • 12″ x 19Lb. I-Beam toungue rails
  • Standard 12.25 x 5″ S-Cam straight air Drum Brakes with emergency breakaway system
  • Tandem 22,500 Lb Rated Axles with Oil Bath Hubs

Additional standard features

• • Tilt Cylinder- ONE- 3″ x 12″ with internal oil trasfer
  • Wood Deck ( 2x 12 Doug Fir Laid Crossways)
  • HItch – Lunette Pintle Ring 3″ I.D.
  • Tire- 215/75R 17.5
  • Tongue Jack – 12K with spring quick-retract
  • D-Rings (1″ Diameter) 4 – Per side
  • A.T.A. standard &- 7-way for air bakes
  • LED lights (D.O.T. standards)

Weights and Measurements

• Overall Length – 30″ – 9″
• Overall width – 102″
• Tongue Length – 6′ – 7″
• Deck Height – 36.5″ (Loaded)
• Deck Length – 24′
• Tilt angle – 12 degrees
• GVWR – 33,200 Lbs. at 55 M.P.H.
• Payload Capacity – 26,000 Lbs at 55 M.P.H.
• Trailer Weight – 7150 Lbs
